windowing
Attempting to set window in Fuzzmeasure for semi anechoic response. Using the impulse graph, I'm looking for that first echo, but not sure where it is. I zoom into the vertical, but it's still not obvious to me. Any tips? I'm generally measuring speaker systems at 1 meter.
I’m confused
1
person has this question
I have this question, too!
Tell me when someone answers.
The more people who ask this question, the more it gets noticed.
The more people who ask this question, the more it gets noticed.
Create a customer community for your own organization
Plans starting at $19/month
-
Inappropriate?You might want to try the log squared impulse response view to find this echo. It's quite a bit easier to see when looking at the impulse this way.
You will likely have to zoom in manually to a more sane level though, like down to -60dB or -80dB at the most rather than the -700 or so that it currently auto-zooms to. -
Inappropriate?Thanks, Chris. I did that, and I am taking a guess this is the reflection, windowed, what do you think? I am measuring at 1 meter and I am getting a resolution of 127.83 Hz. Am I doing this right?
-
Inappropriate?Clarifying what I said above, I think I windowed the impulse, effectively gating out the reflection. I'm not sure if I got the window right. though.
-

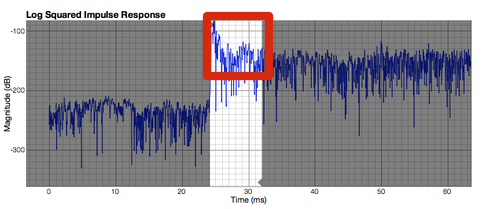

Inappropriate?I think you should try increasing the zoom level a bit more, using the zoom area tool (using the zoom tool, click & drag) to draw a box around the peak to the -150dB point in that graph. See the attached picture.
