digital input to turn BlinkM on/off - so as to not need the use of analogue pins on Arduino?
Is it possible to use digital pins on the Arduino to switch a BlinkM on and off, and then have the BlinkM run a pre-loaded 'standalone' sequence, so as to not require using the analogue pins for i2c communications? As the BlinkMs would be pre-loaded with what they need to do whenever they receive the 'go' and perhaps 'stop' (if a 'stop' in this sense is possible)
This is because I plan to use the 6 analogue pins on my arduino for 6 analogue sensor inputs. Then use six 6 blinkMs - with each one set to start a cycle whenever a corresponding sensor input is sensed (ie BlinkM 1 whenever sensor 1, BlinkM2 when sensor 2... etc you get the drift.
Only I would like to not have to worry with multiplexing/shift out/in types of scenarios if there is no need.
Also - each blinkM would be with its corresponding analogue sensor in six independent satellite units - ie the arduino is the base, and then the 6 units plug in to the arduino box but are able to be moved around separately from one another - each attatched with about 6 feet of cable. Due to this, would relying on an i2c situation (if not able to just go independent digital pin on/off way) be an issue as their would be 12 feet between each BlinkM on the i2c chain.
This is because I plan to use the 6 analogue pins on my arduino for 6 analogue sensor inputs. Then use six 6 blinkMs - with each one set to start a cycle whenever a corresponding sensor input is sensed (ie BlinkM 1 whenever sensor 1, BlinkM2 when sensor 2... etc you get the drift.
Only I would like to not have to worry with multiplexing/shift out/in types of scenarios if there is no need.
Also - each blinkM would be with its corresponding analogue sensor in six independent satellite units - ie the arduino is the base, and then the 6 units plug in to the arduino box but are able to be moved around separately from one another - each attatched with about 6 feet of cable. Due to this, would relying on an i2c situation (if not able to just go independent digital pin on/off way) be an issue as their would be 12 feet between each BlinkM on the i2c chain.
1
person has this question
I have this question, too!
Tell me when someone answers.
The more people who ask this question, the more it gets noticed.
The more people who ask this question, the more it gets noticed.
Create a customer community for your own organization
Plans starting at $19/month
-
Inappropriate?Hi Ben,

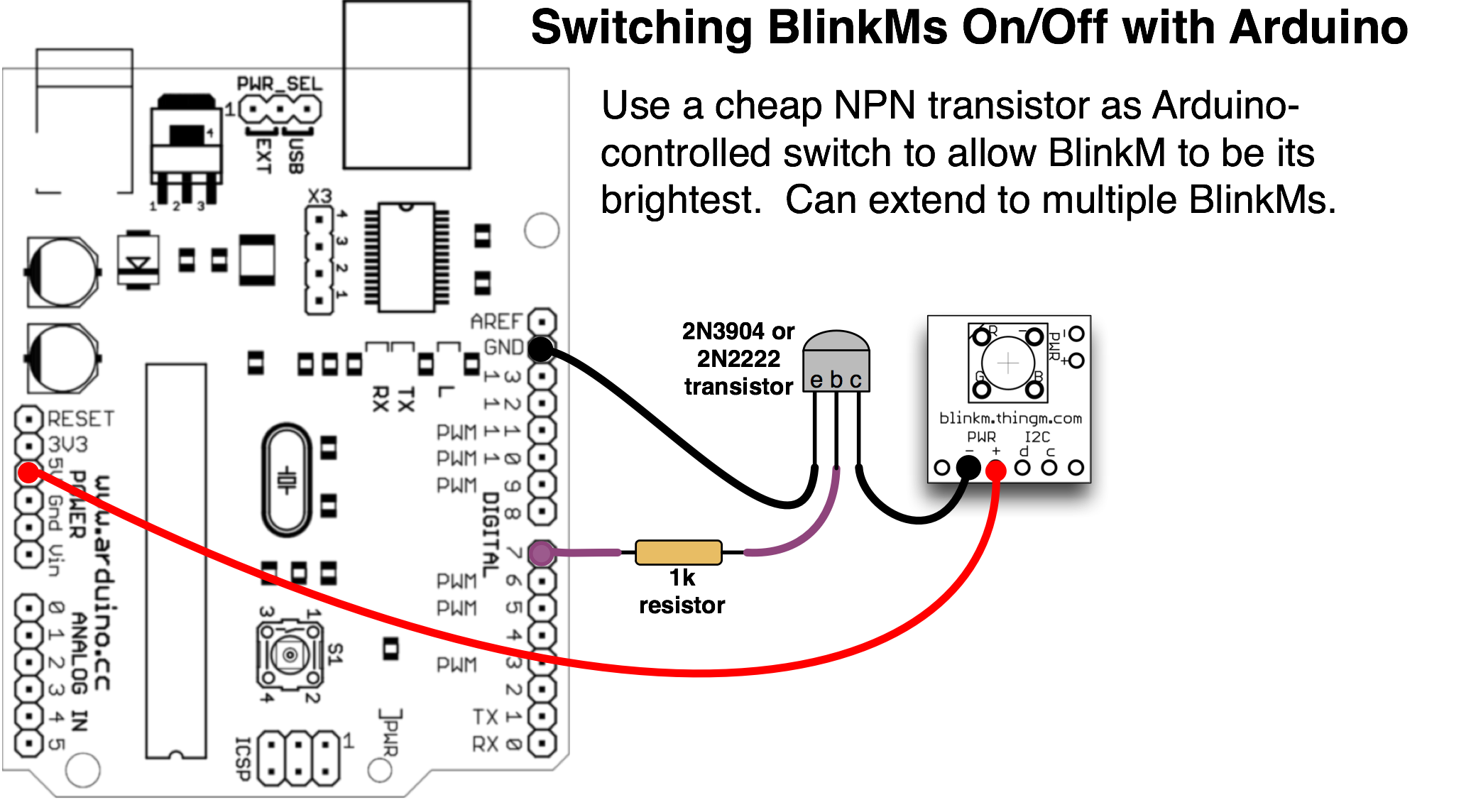

Yup, you can use an Arduino digital pins to power a BlinkM if you want. That would give you back all the analog inputs. But the Arduino chip can only directly power a BlinkM or two (and not at full brightness). To use the Arduino digital pins to switch a BlinkM on & off, you'll need a small transistor, like a 2N2222 or 2N3904, to act as the switch. These are only a few cents and are very small. Below is a wiring diagram of how you would hook up one BlinkM. Adding additional BlinkMs just means duplicating the resistor + transistor + BlinkM circuit as many times as you want.
-

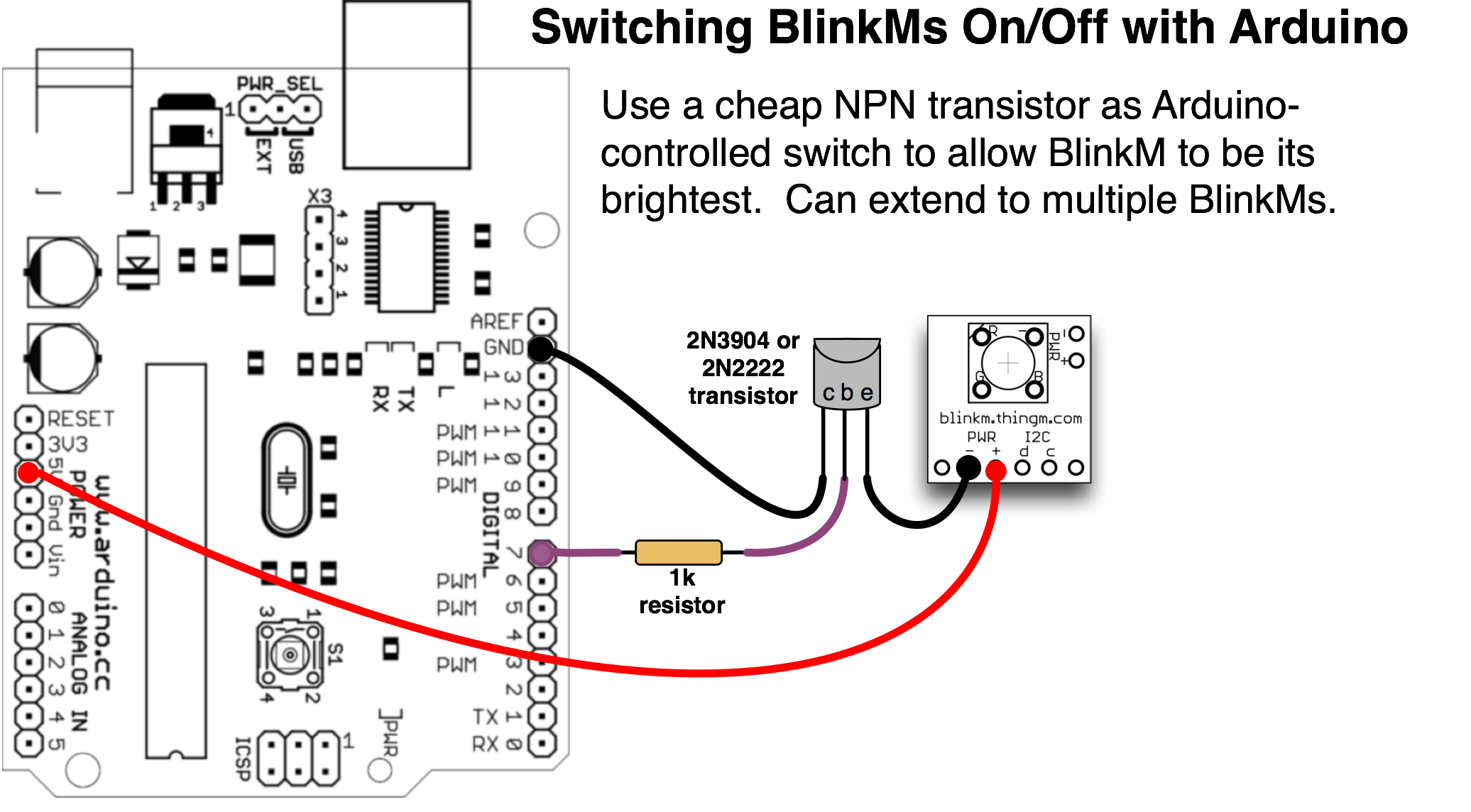

Inappropriate?Ooops, I had the orientation of the transistor flipped in that diagram. The corrected one is here:
-
Inappropriate?I want to control a BlinkM MaxM similarly, except the MaxM will be powered externally. Both the Arduino and MaxM will be receiving power from a common 12V supply. Can I wire the NPN collector to the MaxM's reset pin to hold the MaxM in reset until I want to activate it (I understand it's not actually going to be "powered off" in this case). Is this a safe approach with my anticipated power configuraiton? -
Inappropriate?Hi John,
Yes, if you hold a BlinkM (regular or MaxM) in reset by pulling its RESET pin low, it will effectively be off. I didn't bring this up in the above diagram because the RESET pin doesn't have a header pin soldered to it normally.
You should be able to hook a line directly from an Arduino output pin to the BlinkM RESET line without the need for a transistor. Depending on your application, you might want a pull-down resistor going to Gnd so when the Arduino resets, it keeps the BlinkMs in reset too, since on reset the Arduino pins "float" for a bit until you tell them to be outputs. -
Inappropriate?todbot,
Thanks; my MaxM's arrived today, and I had everything going in no under 20 minutes thanks to your product taking all the pain out of the normal process! Driving the reset pin as you mentioned with a pull down resistor works like a charm; it's really nice to have explicit control of each unit this way.
