Cascade Control 3504

Hello

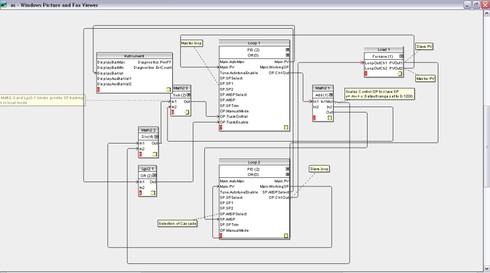

I'm having problems with the circuit image, the application I'm working I use a 3504 controller to perform the function of cascade control. I do not understand the user function block "load", and how do I connect the sensor loop master and slave loop.
Thankful.
