Can't see my own Items any more

  • Problem
  • Updated 3 years ago
  • Solved
  • 1
Hi !
I have lots of own image that I calibrate with "On-board map calibrator"
It works fine before the new ver ( see ScreenCapture), but not now ;-(
Is there any checkbox I have missed ??
Locus say "Importing...." and then "Process Successful" when I select a Item.
But there is no Item on the map .......

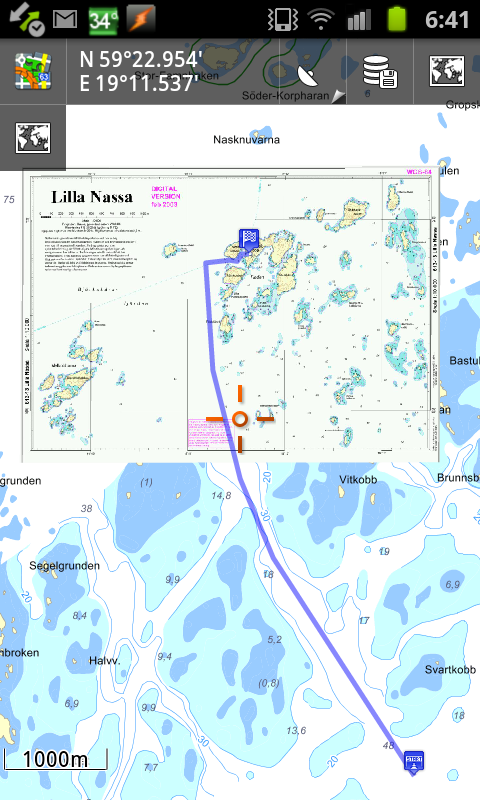

Btw, the ScreenCapture shows a typical application how I use Locus when I'm out and sailing in the Swedish archipelago. No road's, no marked tracks only water, rocks AND underwater rocks !! So I have to watch out and trust Locus ;-)
Photo of Zailor

Zailor

  • 39 Posts
  • 0 Reply Likes

Posted 3 years ago

  • 1
3 years ago
Photo of Menion

Menion, Official Rep

  • 2961 Posts
  • 210 Reply Likes
and the screenshot is from older version?

I'm testing it on KMZ files from Shop (Australia) and it works correctly. May you send me small sample map? Thanks (and really sorry for unwanted problem)
3 years ago
Photo of StarmanS

Starman

  • 150 Posts
  • 20 Reply Likes
Menion-

I also noticed this in test version 2.2.0.9
The only items it seems to affect are calibrated images.
3 years ago
Photo of Zailor

Zailor

  • 39 Posts
  • 0 Reply Likes
yes it's from ver 2.2.1
And sure, I can mail you some sample maps, and the adress is ?
But perhapes Starman had a good point !

Btw, in fact Locus sometimes crash when I work with the map calibration......
I remember there was some "logging software", I think that should be good for me (and you) if I made some logging when Locus crash and then send the log-file to you
( Yes I know it can be problem if the image is to big .........where is the limit whats big ? )
3 years ago
Photo of StarmanS

Starman

  • 150 Posts
  • 20 Reply Likes
Hi Zailor-

The crash while using on-board calibrator is a memory issue, recently discussed here-

https://getsatisfaction.com/locus/top...
3 years ago
Photo of StarmanS

Starman

  • 150 Posts
  • 20 Reply Likes
Like Zailor says, when you load a calibrated image item, you get the normal messages, but no image. If you click on the item, then click "center map", the screen center moves to where the center of the map should be. So apparently the calibration points are loading, but not the image.
3 years ago
Photo of Menion

Menion, Official Rep

  • 2961 Posts
  • 210 Reply Likes
since 2.2.1, Locus support semitransparent images. Unfortunately if GroundOverlay do not have set color, locus make it fully transparent.

Issue fixed. Workaround to next version is to add to problematic GroundOverlay tag




  <color>ffffffff</color>
3 years ago
Photo of StarmanS

Starman

  • 150 Posts
  • 20 Reply Likes
Something odd too besides color, regarding names.
I tried to create new map using same image as first map.
Used 4 new calibration pts, gave new map new unique name.
Process was "successful"
Map with new name.kmz now shows up on Items tab.
But when I load it, it lists under "Loaded Map Items' with old map name!!!
2012-04-12T08:24:49+00:00
Photo of StarmanS

Starman

  • 150 Posts
  • 20 Reply Likes
Above happens even if I delete old map from Locus/mapitems !!:

New map name shows on Items Tab
Old map now does not show on Items Tab.
But loads with old name.
even with old map deleted!
2012-04-12T21:09:12+00:00
Photo of StarmanS

Starman

  • 150 Posts
  • 20 Reply Likes
When above naming problem occured, I was using Locus Pro (2.2.1), but I also had Locus Free/Test (2.2.0.9) installed. Now have updated Locus Free to 2.2.1, naming problem no longer exists.
2012-04-13T06:57:55+00:00
Photo of StarmanS

Starman

  • 150 Posts
  • 20 Reply Likes
Adding color tags cured map visibility problem.
I have no further issues with calibrated map items.
2012-04-13T09:58:02+00:00
Photo of Menion

Menion, Official Rep

  • 2961 Posts
  • 210 Reply Likes
testing Free and market Pro was causing such issues? Interesting .. I changed a little some methods in parsing KML files but it should not have effect on this ... hmm

anyway, glad that problem solved. In case of next troubles, feel free to create new topic.
3 years ago
Photo of francois

francois

  • 3 Posts
  • 0 Reply Likes
Yes I aso have this issue. As discribed by Starman. The calibrated image does not plot. Thanks, so we assume issue will be resolved in next update?
3 years ago
Photo of Menion

Menion, Official Rep

  • 2961 Posts
  • 210 Reply Likes
sure Francois. Issue is already solved so expect new version soon. Sorry for this once more ...
